Tuesday, November 15, 2022

CCTV Camera Cable Variations

CCTV Camera Cable Variations

We know that selecting your CCTV cameras and video recorder may have been a little more work than you might have anticipated. We’re sorry to say that the decision making process isn’t over just yet. We can say with confidence that about 90% of tech support related issues are a result of problems with cabling. This makes your choice in cable one of the more important decisions you’re going to make.

Siamese Cable

Siamese cable is really two different cables fused together. You have your coaxial cable (RG59) for video, and power cable. The video portion will serve to relay the video feed from your camera back to your DVR, while the power cable will relay power from your power supply to the camera. Siamese cable is appropriate for any analog, HD-CVI, and HD-SDI security camera system.

This is easily the most popular choice, but there are different levels of quality which can tie into the decision making process. You’ll often see the acronym “AWG” along side of this type of cable. American wire gauge (AWG) is just the unit of measurement that represents the “gauge” or thickness of the wire.

Your standard pre-made Siamese cable will usually be 24AWG or 26 AWG. This is going to seem thin when you hold it in your hand but it’s still very practical. Cable like this is functional for runs up to 150 feet. We don’t recommend going much further than that as you’ll very quickly begin to experience video and/or power loss because of the thinner gauge copper wire. Also, because of it’s thin gauge, pre-made Siamese cable can only be used reliably with standard analog cameras. You will not be able to use this with HD-SDI or HD-CVI cameras.

Pre-made Siamese Cable

The alternative to pre-made is to purchase Siamese cable sold by the spool. This is also commonly referred to as RG59 cable. The coaxial cable that comes off of a spool is normally 20AWG while the power cable is 18AWG. There are two different types of coax in this industry and most of it is copper clad. This means that the center wire is aluminum or silver but cased inside of a copper shell. This type of cable is good for runs up to 300 feet. Some people have been able to push this as far as 400 feet, but usually after 300, you begin to experience video degradation. The other option is solid copper Siamese cable. Unless you have an HD-CVI system, this probably isn’t going to be necessary for you, but you might find that this is a good solution for you if you just need to stretch those 300 foot runs a bit further without video loss.

Siamese Cable from Spool with Various Power and BNC Connectors

Just keep in mind that standard analog and HD-SDI systems are only designed be able to go up to 300 feet. Whether it’s copper clad or solid copper, either one should work just fine for you. Solid copper cable only comes into the picture with HD-CVI systems because there runs can go up to approximately 1600 feet. Without solid copper Siamese cable, you start to experience video degradation pretty early on.

CAT5e Cable

Cat5 and Cat5e are absolutely different no matter what anyone tells you. Ordinary Cat5 cable should not be used with CCTV products. The quality of the cable is too poor for this application and will cause frequent problems if it works at all. If you choose to run this type of cable, it needs to be at least CAT5e (we’ll get to CAT6). You can use this type of cable with standard analog cameras, and it’s required for IP/network cameras.  If you choose to go with Cat5e for your analog cameras, you shouldn't have any issue with runs up to 1000 feet.  If you are using Cat5e with IP cameras that are power over Ethernet (PoE), your cable runs can go as far as 300-1000 feet, while non-PoE cameras will be limited to the power supply being used with them (usually about 300 feet).  The power consumption of your PoE IP camera will ultimately dictate the maximum length of your run but you can usually expect at least 600 feet (12W power consumption).

Analog cameras, as you may have already realized, aren’t really set up for Cat5e cable. The work around for this is to use baluns. Think of baluns like converters that attach to your cameras to make them compatible with Cat5e. There are various types of baluns to choose from depending on your needs.

Network camera, or IP cameras, have a network cable port on their pigtail. Whether the IP camera is power over Ethernet (PoE) or not, the network cable port will be there. You’ll also have a female power terminal on the pigtail very similar to that of any analog or HD camera.

If you have a camera that’s PoE, you can run that single length of Cat5e cable and you’ll have video and power going through the same cable. If your camera is not PoE, you will need a dedicated power source to power the camera. The Cat5e cable will still be good for video, but you’ll most likely need to run a separate power cable in addition to your Cat5e cable unless you have an outlet close enough for the power supply to reach the camera.

The alternative to running two separate cables is to use simple PoE power adapters for non-PoE IP cameras that will essentially convert your non-PoE camera into a PoE camera. They’re identical in purpose to video and power baluns. You’ll still need a dedicated 12V DC power supply for the camera, just like you would any analog camera, but these adapters will enable you to position your power source somewhere much more convenient; for instance, next to your network switch or network video recorder (NVR).

Cat6 Cable

This type of cable is almost never necessary. The fact is that as of right now, there aren’t any IP cameras that require Cat6 cable, but because of the fact that Cat6 is backwards compatible with CAT5e, there is absolutely no harm in using CAT6 or CAT8. Due to the fact that CAT6 is the newer, bigger, and better thing out on the market though, a lot of people choose to go with Cat6 cable in an effort to predict the future in a way. By using CAT6 cable now instead of Cat5e, you may be preventing yourself from having to run new cable later when you upgrade your system. Predictably, cameras will only be getting more advanced and as such will probably require a more advanced cable in the distant future, such as Cat6. Theoretically, Cat6 may be able to lengthen the maximum distance of your runs, but testing for it is so scarce that we wouldn't be able to confirm that with any confidence.

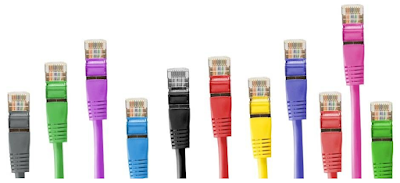

Cat 5 vs Cat 6 vs Cat 8 Ethernet Cables

Designed by integrating cutting-edge technology, the cat 8 cables elevate the performance to the next level. Having a higher bandwidth performance than Cat 5e and Cat 6, Cat 8 cables are the most sought-after ones nowadays.

A comparison of Cat5e, Cat6 and Cat8 Ethernet cables would reveal that cat 8 cables are far more superior than the former two, even though it has a few cons.

Cat8 cables have better frequency characteristics that make them capable of offering higher data speeds than Cat 5e and Cat 6. It can support bandwidth up to 2 GHz for a distance of up to 30 meters. The data speed guaranteed by cat 8 varies from 25 Gbps to 40 Gbps.

On the other hand, Cat 5e Ethernet cables offer a maximum frequency of 100 MHz and Cat 6 supports a max frequency of 250 MHz. The data speed of the Cat 5 cable is limited to 1000 Mbps and that of the Cat 6 Ethernet cable is 10,000 Mbps.

The only major drawback of Cat 8 Ethernet cable is the distance it performs the best. Cat 8 cables are ideal for home installations, LAN in office spaces of small areas etc. Cat 8 Ethernet cables simply assure network speeds from 2500 Mbps to 40,000 Mbps.

The Power of Ethernet or POE is another advantage of using Cat 8 cables. Thereby you can save on cabling expenses at home as well as office. Ideal for space management, reducing clutter, and optimal performance, Cat8 Ethernet cables might be a preferable choice for you.

Twisted Pair Cat 8 Cables

Increased data speed has become a necessity presently. Every minute delay is costing businesses, and individuals offering services their money, time and effort. The electromagnetic field created through the passage of electricity and electromagnetic interference can impede the speed and flawless performance of the network.

Twisted pair cables are a solution used for reducing the effects of the magnetic field. The magnetic field created would be contained in the limited space. Thus high-speed data transmission would occur unaffected.

More twists in the network cabling would provide improved frequency characteristics to the cable. Furthermore, individually shielded pairs of network cables are another method for enhancing frequency.

The categories of cables available in the market presently are:

Cat 5 cables

o   Bandwidth – 100 MHz

o   Data Speed – 100 Mbps

Cat 5e cables

o   Bandwidth – 100 MHz

o   Data Speed – 100 Mbps

Cat 6 cables

o   Bandwidth – 250 MHz

o   Data Speed – 1 Gbps

Cat 6A cables

o   Bandwidth – 500 MHz

o   Data Speed – 10 Gbps

Cat 7 cables

o   Bandwidth – 600 MHz

o   Data Speed – 10 Gbps

Cat 7a cables

o   Bandwidth – 1000 MHz

o   Data Speed – 10+ Gbps

Cat 8 cables

o   Bandwidth – 2500 MHz

o   Data Speed – 40 Gbps

Wednesday, January 1, 2020

Security Industry Predictions for 2020

Security Industry Predictions for 2020

Wishing you a very Happy New Year.

Some trends observed by the security and surveillance sector are Artificial Intelligence, Cloud Computing, Cybersecurity, Sensor, integration.


According to annual reports from the Ministry of Electronics and Information Technology. In 2016-17, while the reported incidents stood at 35,418, in 2017-18 there were 69,539 incidents, rising to 274,465 in 2018-19. India reported slightly more than 313,000 cybersecurity incidents in the ten months to October.  The country is plagued with weak e-infrastructure and is not capable of meeting the needs of a growing economy and its population. Corporate growth and investments can be hampered if the government fails to close the e-infrastructure deficit. E-Infrastructure. E-Infrastructure comprises tools, facilities and resources that are needed for advanced collaboration and includes the integration of various technologies such as the Internet, computing power, bandwidth provisioning, data storage etc.
Some trends observed in the security and surveillance sector are Artificial Intelligence, Cloud Computing, Cybersecurity and integration. Intellectual property (IP)-based surveillance technology, touted as the future of surveillance systems, has replaced closed-circuit analogue systems. Some trends like sensors, biometrics, real-time connectivity, advanced processing software and analytics have also propelled the industry growth. Some of these trends have enhanced the efficacy of security systems, whereas others have the potential of having adverse impacts.

Common prediction themes across vendors include the 2020 elections in the U.S., more targeted ransomware, more ways to attack the cloud, and an explosion of problems with deepfake technology.

Cybersecurity
There’s disagreement on the most important cyber threats to focus on as we head into 2020, even though everyone agrees that cybersecurity is more important than ever before. Cyber-attacks of all kinds have become, and will continue to be, a major threat, making this one of the most important initiatives that today’s businesses embrace. From a manufacturer’s perspective, building cybersecurity into the product from its inception is critical, with integrators beginning to demand this level of consideration from the products they sell. As a result of a rise in the convergence of IT applications alongside security investments, end users are now seeking out solutions designed with data security top-of-mind. As HikVision, Dahua named Chinese product already ban in various sector globally including under umbrella brand. All network connected devices such as DVRs/NVRs, servers, IP cameras, access controllers, intrusion alarms, smart sensors, are vulnerable, which is why this added step in developing cybersecurity protocols and applying them across the organization is critical.

Internet of Things (IoT)
The Internet of Things (IoT) has been a major trend for the past few years in many industries, and this will continue as we integrate sensors of all kinds into the network. The collection and analysis of the data collected by these sensors is giving rise to a plethora of applications such as industrial applications, intelligent building management, event management, and much more. The physical security industry benefits by having additional intelligence for situational awareness and emergency management, as well as opportunities to provide additional value-added services and business insights. Being deployed in an increasing number of scenarios and with continued improvements in computing capabilities, video has the opportunity to become the eye of IoT.

AI-Enabled Devices
For 2020, AI does show up again in a number of new ways — with several specific warnings for those who fail to use AI to counter bad actors who will be using it. Software manufacturers are looking toward artificial intelligence to help propel advanced analytics in an effort to deliver more situational awareness to operators, and an increased ability to proactively assess threats or anomalies. While video and data analytic capabilities have been around for quite some time, some would argue they were rudimentary in comparison to software that uses AI to make existing applications such as facial recognition much more accurate, and to create new ways to detect anomalies. In addition, AI continues to be used to make sense of the large amounts of data that are being generated by intelligent sensors and by analyzing the growing amount of video.
Businesses and other organisations could face multimillion-pound fines if they are unable to explain decisions made by artificial intelligence, under plans put forward by the UK’s data watchdog in Nov 2019. The Information Commissioner’s Office (ICO) said its new guidance was vital because the UK is at a tipping point. where many firms are using AI to inform decisions for the first time. This could include human resources departments using machine learning to shortlist job applicants based on analysis of their CVs. The regulator says it is the first in the world to put forward rules on explaining choices taken by AI.

Are we still talking about robots as a threat to jobs? According to Google Trends data, automation remains a controversial topic. “Are robots taking over jobs” is peaking at a similar search volume as ten years ago — but a new concept is changing the role of automation in the workplace.  Augmented intelligence is one of the few technologies named on the Gartner Hype Cycle for Emerging Technologies, 2019 that are predicted to reach expectations, over the next two-to-five years. In contrast to artificial intelligence (AI), augmented intelligence emphasises collaborations between AI and human workers. It’s designed to enhance human skills and allow them to work faster and more efficiently, rather than replace them.
In contrast to artificial intelligence (AI), augmented intelligence emphasises collaborations between AI and human workers. It’s designed to enhance human skills and allow them to work faster and more efficiently, rather than replace them. That said, while advanced AI can fix some issues automatically, the process is not always devoid of human intervention. Other issues, such as emergency maintenance of a machine, will always require human involvement at some stage. AI can provide the alert, but it can’t always do the work.


Cloud and Mobile Capabilities

Mobility is critical for physical security and is emerging through the development and use of cloud-based services, as well as the ability to access security devices through a smart phone or Web-based browser. That’s why there’s been such an influx of mobile apps created to manage cameras, receive automatic alerts for the most diverse event, and giving users the ability to grant or restrict access to a facility. All of this demonstrates the world’s demand for mobility, connectivity and ease-of-use.
I believe there will be a data breach to end all data breaches, and it will happen in the cloud and affect billions of users. Chances are it will happen to a hybrid cloud that will lead the hackers down a rabbit hole that will gain them access to multiple cloud entities. This breach will cause a fundamental shift in how cloud providers handle security; look for serious changes to the authentication process of cloud providers by the end of the year.

5G Connectivity
2020 is the year 5G goes mainstream. It’s safe to say that 5G will revolutionize the way people stay connected to the internet. Extra speed, extra bandwidth are going to make our mobile devices faster, more powerful and hyperconnected, with the same thing happening to IoT connected devices such as cameras. This is going completely change the way we think about smart cities: More powerful IP devices connected to one another, powered by AI, will have a massive impact on the way we move, shop and live in urban areas. In 2020, 5G is likely to start becoming a reality in India with its spectrum allocation taking place in the coming months. This will enable telcos and equipment makers to conduct full-fledged trials. Smartphone makers such as as OnePlus and Realme have also announced their plans to bring 5G phones to the country next year to set the pitch for new networks.
2020 will be the year when we would see 5G emerging as a household network technology in many markets around the globe. Australia, Argentina, Canada, and Japan are amongst the key countries where the next-generation wireless technology is set to debut in the coming months.

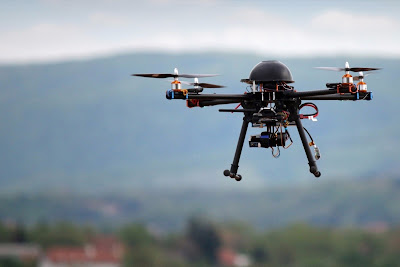

Drones Open up New Pathway for Intelligence Gathering
To date, the security concern around drones has mostly been focused on the physical damage nefarious actors, including nation states, could perpetrate. In 2020, we could start seeing attackers focus more on what drones know and how that information can be exploited for intelligence gathering, corporate espionage and more.
Military usage of drones or RPAS (Remotely Piloted Aerial Systems) has become the primary use in today's world. Used as target decoys, for combat missions, research and development, and for supervision, drones have been part and parcel of military forces worldwide.


Video — Everywhere
Video is the cornerstone of security, providing both real-time and forensic coverage for emerging threats and incidents, which is why it’s one of the fastest growing segments of the marketplace. The use of video for traditional applications in new markets, as well as for use in newer applications that are not necessary security related is poised to see the most movement. In some industries such as oil and gas, there is a trend towards extending video coverage into extremely harsh and hazardous environments, so manufacturers are challenged to develop appropriately certified equipment to meet a more stringent demand. Manufacturing facilities such as food processing plants are also increasing their use of video for training and compliance purposes to prevent incidents such as food recalls that can be extremely costly for the business. Huge number Video footage destroy without viewing what camera saw. in this 2020 video auditing will start journey. In order to mitigate occupational safety and health issues, several organizations employ various safety and security measures to address the same, one of them being CCTV/video surveillance systems. CCTV/video surveillance systems are highly effective at visually identifying several risks connected with unsafe behaviours of the workforce and the critical conditions of the working environment.
‘Auditing’ means 'seeing' what the cameras 'saw'. CCTV video footage should be audited daily; several times a day if need be. Depending on the requirements, auditing of CCTV footage of critical cameras on a daily basis must become an SOP. Auditing will help relevant stakeholders to ‘discover’ the 'unknown'. Auditing as an activity may be manual, it may be post-facto, but it is a very dedicated and systematic process, which helps address some of the challenges of live monitoring (video blindness, poor attention span, boredom, bias, fatigue etc.), as well as the challenges related to alert-based systems (how often has one faced false alerts, or what is called the ‘cry-wolf’ effect). Auditing will help discover issues as mentioned above as well as in identifying and analysing threats and hazards (THIRA/HIRA) of various kinds. Auditing CCTV video footage will also be extremely helpful in waste reduction and following the 5S philosophy, i.e. sort, set, shine, standardize and sustain (all part of Six Sigma practices). It’s an exciting time to be a part of the security market, as we’re really just beginning to see that, when it comes to technology advancements, the sky is the limit. I would argue at the core of these innovations is the video data being collected, and as we work to build technologies that can harness the power of these applications, we will continue to be at the forefront of this movement toward greater intelligence and business insights.

The Indian security market is experiencing unprecedented boom due to huge demand. The growing awareness in the retail and enterprise segment is giving security solutions a cult status. A new phase of the consolidation process is on in the Indian security market.

Sunday, August 5, 2018

Planning, design & Errection of Video surveillance systems Code of practice for hotel sector

Planning, Design & Erection of
Video surveillance systems
Code of practice for Hospitality sector
(Proposed)

1. Introduction

Any business that operates within the hospitality sector will be more than aware of how much liability insurance can cost. There are a number of factors that affect this cost.

“Right from the time when someone enters a business premises till the time they leave, the business is held responsible for any kind of misshapen with them.” – This is not just a statement, but one of the biggest risks that all businesses have. In fact, the hotels and hospitality providers are mostly affected by this risk. If a customer or an employee gets hurt in the business premises, the business may have to go through the frustrating and lengthy litigation process.

While some claims can be completely genuine, unfortunately there are going to be some fraudulent and bogus claims. A business has to be prepared to argue their case and provide evidence, which is where the Video Surveillance installation can be a worthwhile investment.

Proper evidence is required to check out the facts which can be provided by CCTV footages. This is the reason why surveillance cameras are often installed in the premises of hotels and hospitality providers.The installation of CCTV equipment can be a one-off cost that acts as a powerful deterrent for opportunistic criminals.

The correct design and use of such systems is paramount to ensure a CCTV surveillance system meets the needs of the user, provides a tangible benefit and provides safety and security for the wider law-abiding public.

NOTE: In this context, the term Video Surveillance System (VSS) synonymous with CCTV.

2. Scope
This code of practice gives recommendations for the planning, design of all Video surveillance systems.
This code of practice has been prepared to assist in this process by taking account of the various standards for Video surveillance systems, and presenting them in a usable framework necessary to achieve an effective security surveillance solution.

3. Planning

3.1 Component
Now we pose a few questions that you need to keep in mind before purchasing your security system.
1.     Where in your hotel theft is most common?
2.     Which are the areas you wish you could capture on tape?
3.     Is the neighborhood around the hotel conducive to crime and theft?
4.     What kind of guests do you receive?
5.     What is your property layout?
6.     Is it a Cottage style property?
7.     Does it have a single building which houses all its rooms and amenities or has more than one building for different purposes?
8.     Does the hotel have a history of employee theft, guest criminal cases, or legal cases pending?

The questions above help determine the quality and level of security that you will need. Usually, hotels with low-risk environments require basic surveillance security and those in danger zones have a high priority security system.

This is not always the case as it also depends on the guests the hotel cater. Business hotels in comparison to luxury hotels or best value hotel have a higher aptitude for security.

The main key component of video surveillance is Camera, Storage (NVR/DVR/NAS) & image Presentation Devices. Video analytics, ANPR etc are optional. There are two technology of Video Surveillance system, Analog & Digital/IP. Here arethe different types Of CCTV Cameras: Dome Camera, Bullet / Box Camera, Zoom Camera, Speed Dome/PTZ Camera, Panoramic Camera.

Business hotels require a closed network surveillance system which can take care of sensitive information and give complete privacy to guests.

3.2. Capturing user need
It is the responsibility of the system specifier or purchaser to identify and record the purpose of the video surveillance system. When planning CCTV systems it is important to remember that there is no ‘one size fits all’ solution. Each site will have its own unique needs based around numerous factors (including nature of site, geographic location, local environment, history of issues). Similarly each end user will likely have their own expectations regarding what the system will do for them (e.g. deter crime, improve detection of crime, monitoring movement of personnel).

If you are a hotel owner or a manager, ensuring everything going right is definitely one of your major responsibilities. Hotel room surveillance is illegal. CCTV security cameras in hotel room are NOT allowed. Installing security cameras in hotel rooms is a serious privacy violation.

Security cameras are legal when being mounted or installed in public areas, such as, lobbies, elevators, receptions, etc.

3.3 Risk assessment
Risk assessment should be performed to ensure the design of the system results in an installation that adequately addresses the threats and reduces the security risks. In order to identify the level(s) of security required (and potentially therefore the grading of the elements of the system), an assessment of the factors which are likely to come into play is required. In very global terms, from a security perspective these elements are typically considered as:
Threat (Who): The threat will typically be defined as the persons or events to be protected against. Threats will vary greatly in termsof objectives, determination, capability, resourcefulness,
Vulnerability (What / Where):The vulnerability will typically be the areas of concern that require protection. The level of vulnerability will be defined by numerous factors such as desirability of the objects in the area, ease of access, operational hours of the environment, exposure / secluded nature of the area.
Risk (What if?): Risk is effectively the consequence of a successful or attempted intrusion or event. These risks can be wide and varied and not immediately obvious. Risks and impact levels of each identified risk will typically vary depending on the nature of site. Risks can include:
1.     Immediate Financial Loss: Immediate value of items lost.
2.     Ongoing Financial Loss: Increased insurance premiums, time to return to profit.
3.   Personal Safety: Injuries to staff and / or members of public involved in violent incident.
4.     Stress Related Issues: Reduced staff morale, loss of staff due to safety concerns.
5.  Non-financial loss: May include loss of intellectual property, company data or similar.
Typically security systems cannot change the identified threat or alter the risk, but well deployed security measures significantly reduce the vulnerability. This in turn helps to reduce the likelihood of risks occurring.

These services are provided in different environments, such as swimming pools, fitness areas, dining halls, common areas and individual rooms. Each area has its own potential risks; for instance, guests can slip and fall near the swimming pool area if not properly maintained or they may get injured in the fitness area. Some of the most common causes of injury in these places are:
1.  Physical Attacks: Although the premises of hotel and hospitality providers are considered safe, in some crowded and low budget hotels, criminals may attack guests for their money. In these situations, the presence of outdoor surveillance cameras acts as an evidence against those criminals.
2.   Slips: Usually, the flooring is not similar in all areas of the premises. The guests being new generally do not pay much attention towards the uneven flooring and so they may slip and fall. Moreover, cracked flooring, worn-out carpets and wet floors are some of the major causes of slip and fall accidents.
3.  Broken Furniture: In order to save money, some hotels do in-house repair of furniture that broke down due to overuse. Because of its age and some guests’ weight, the furniture may collapse and injure the guests.

3.4. Operational requirements and agreeing with the customer
Ideally the Operational requirements (OR) document should be raised by the end-user or their authorized representative (such as a security consultant) and used as the basis for specifying the required system and subsequent performance tests. Planned or possible future expansions to the system, including addition of further cameras, monitoring locations and integration with other systems.

3.5 Target Capture and Image Detail
Detection, Recognition and Identification (DRI) in video surveillance is very important terms to get image details. DRI ranges, expressed in meters, km (or miles), can be found in the specification table of infrared camera brochures.
The terms “Detection”, “Recognition” and “Identification” were defined as follow:
·        Detection: ability to distinguish an object from the background
·        Recognition: ability to classify the object class (animal, human, vehicle,  …)
·        Identification: ability to describe the object in details (a man with a hat, a Jeep …)

As a best practice, do not assume the camera resolution is everything in regards to image quality. For a camera to operate in a day-night environment, (the absence of light is zero lux), the night mode must be sensitive to the infrared spectrum. It is highly recommended to conduct tests or pilot installations before buying large quantities of any model of camera.

A lens is a transparent optical device with perfect or approximate axial symmetry which transmits and refracts light, converging or diverging the transmitted light and to form images. A simple lens consists of a single optical element. A compound lens is an array of simple lenses (elements) with a common axis; the use of multiple elements allows more optical aberrations to be corrected than is possible with a single element. Lenses are typically made of glass or transparent plastic.
The practical effect of this is that a camera may need to have a wider or narrower field of view so that the necessary amount of detail can be seen and that in some circumstances more cameras may be needed, either to increase the area covered with the same detail or to allow for different levels of detail to be seen from the same view.

The measure of the fine detail that can be seen in an image. For analog systems this is typically measured in Television Lines or TVL. Higher TVL rating, the higher the resolution. Same way megapixel (MP) like 1.3mp, 2mp, 4mp, 8mp etc.

Resolution-horizontal
The amount of resolvable detail in the horizontal direction in a picture. It is usually expressed as the number of distinct vertical lines, alternately black and white, which can be seen in a distance equal to picture height.

Resolution-horizontal - vertical
The amount of resolvable detail in the vertical direction in a picture. It is usually expressed as the number of distinct horizontal lines, alternately black and white, which can theoretically be seen in a picture.

The graphic below shows a comparison of the resolutions listed if each pixel takes up the same amount of space.

Key camera areas, include exterior entrances and exits, parking lots, the front-desk area, the lift, the floor corridor, the hotel lobby, cooking area, linen room, bar, casino and swimming pool exterior area.
Account should also be made of the difference between live operation and playback / review operation when considering image size requirements. For example, in a live monitoring situation, where a rapid assessment of the scene or situation may be needed, a higher screen occupation may be required than a system which is required to be more ‘reactive’, whereby little or no live interaction is anticipated and recordings / events can be reviewed in slower time.

3.6 Environmental considerations
Consideration should be given to the need for specialist equipment or installation techniques in certain environments.
Consideration of environmental requirements should be given to areas which may not be immediately obvious. For example where hard disk storage systems are to be installed which may, in their own right, raise the local temperature to an extent whereby artificial cooling methods such as air conditioning are required to help ensure longevity of the equipment.

3.7 Regulations and Legal Requirements relevant to CCTV
There are many legal requirements and regulations that apply to CCTV including those listed here. It is the responsibility of the owner, installer, maintenance company and operator to ensure compliance with these as appropriate to their activities and location. Consideration should also be given to other byelaws introduced by local government. These will vary from region to region.
The following Acts of Parliament are known to affect the majority of CCTV installations and use of CCTV but others will apply in specific circumstances:
1.     The Human Rights Act 1993(Amendment Act, 2006)
2.     The Data Protection Act 1998 (DPA).
3.     The Right to Information Act 2005
4.     The Private Security Industry Act 2005
5.     The Clean Environment Act

1.   Design

4.1. Site Survey
A site survey should be conducted to take into account specifics of the site along with the OR. Locations of interest should be established and documented on the site plan. Accordingly select camera type, quality of picture etc. The site survey should consider lighting. Depending on circumstances day and night time surveys may be required.

The performance of a CCTV system is primarily dependent upon the available light level. It is important, therefore, that the limits of light levels within which a CCTV installation is intended to function are expressed in units of illumination (e.g. lux).
Light levels are normally measured in lux, the SI unit of luminance. In some cases the amount of light will be quoted in foot-candles. One foot candle is approximately ten lux. Lux levels apply only to visible light spectrum and are not relevant to infrared systems

Lux is measurement of the intensity of light. It is equal to the illumination of a surface one meter away from a single candle.

The survey should be used to decide the positioning of all key equipment of the system along with the necessary environmental protection requirements.

The site survey should consider power and device interconnection together with provision of local power supplies, routing of cables, wireless links, etc.

During the survey consideration should be given to how the equipment will be installed and other considerations such as accessibility, access times, need for closures whilst equipment is being installed and accessibility for maintenance.

4.2 Equipment Selection
Equipment means Camera, Storage, software, Viewing monitor etc. Consideration should include environmental factors (e.g. efficient use of power, disposal of consumable items, and control of hazardous substances).

4.2.1 Camera and lens
A camera and lens should be compatible and should be selected to cover the area to be viewed, taking into account any person or object required to be identified. See section 3.5.
Selection of the correct lens type is as important as the camera selection. A poor lens performance can significantly detract from the overall performance of the system. For further information refer to BS EN 62676-4 clause 6.5.

4.2.2 Sensitivity of Light
When selecting a camera for a particular application, consideration should be given to the type of light source and the spectral response of the imaging device in addition to the scene reflectance and lens. Available light level will have a major influence on the choice of camera and typically the sensitivity of a camera measured under laboratory conditions may not match results under natural operating environments. There may be a trade-off between higher resolution cameras and a reduction in sensitivities.
Wide dynamic range cameras can help compensate for large variations of luminance across a scene and provide acceptable exposures simultaneously in the brightest and darkest areas of the image.

4.2.3 Field view
The width and height or area desired to be covered by one camera. This area is determined by the focal length of the lens on the camera and the distance the camera is mounted from the scene.The equipment selection should ensure the field of view matches the system’s operational requirements.

4.2.4 Illumination
A video surveillance camera requires a certain amount of lights produced by natural or artificial illumination. The amount of lights is defined by LUX(Lumens per Square Meter). Depending on the choice of camera equipment and the system’s operational requirements extra illumination may be required.

Refer to BS EN 62676-4 clause 6.9 for points to consider e.g. positioning, beam pattern, maintenance, deterioration of light source with age, unwanted reflections, type of lighting and switching

4.2.5 Housings and mountings
A camera and its supporting hardware should be securely mounted. The camera mounting bracket orpole should safely support the weight and windage of the camera and of any associated hardware. Remember that a small amount of deflection in a pole when a camera is fully zoomed in at a distant target will result in large degrees of movement in the scene.

Consideration should be given to the environmental conditions in which the equipment is intended to operate with respect to the additional features which may be implemented into housings i.e. heaters, wipers.

Protection against malicious damage either though forceful impact, scratching or burning plastic windows or dome bubbles, or spraying should be addressed by using a combination of housing specification and physical positioning.

All equipment installed should be suitable to withstand the prevailing environmental conditions according to the environmental classes in BS EN 62676-1-1. This includes protection against dust, particles, water and any special environmental conditions that may prevail on the site (e.g. corrosive or explosive atmospheres).

4.2.6 PTZ Mechanisms
PTZ indicate Pan, Tilt & Zoom, so a camera having this three feature is called PTZ camera or speed Dome camera. Hotel Parking area, main gate entrance, open out door space, swimming pool, playground, sea beach etc area should cover by speed dome camera.
The maximum required pan and tilt rotation angles and any intermediate preset stops is required. IP66 based enclosure should protect out door speed dome camera.

4.2.7 Powering
Consideration should be given to the power requirements of the system. This includes:
• Local or centrally powered (Must be UPS power)
• Mains or low voltage. (110V to 220V AC)
• Back up / Stand-by power in the event of mains failure.

For Power over Ethernet (PoE) consider the potential need for high power PoE supplies for certain cameras, especially ones with in-built illuminators, heaters or motorised PTZ functions. For PoE also consider the limiting distance factor of 90m in order to deliver the maximum power from the power sourcing equipment (PoE injector) to the powered device. Greater distances will adversely affect performance of the cabling including bandwidth.

The outdoor surveillance cameras record everything in real-time and this recording is stamped with date and time. This becomes a proof of evidence in determining whether the claims are genuine or fake. Sometimes, it happens that guests get injured by their own mistakes, such as because of being drunk or careless attitude. In such cases, the guests usually file a lawsuit against hotels and hospitality providers. Unfortunately, most of the cases result in favor of the guests because hotels do not have any evidence to defend themselves.

4.2.8 Video performance
Equipment and system design should take into account the need to achieve performance levels and characteristics as stated in the operational requirements. This should include consideration of frame rate, resolution and quality of live and recorded images both for human viewing and for automated video analytics.

In cases of injuries borne on the property, CCTV ascertains whether the injury was because of misbehavior of the guest, or an accident, or the negligence of the business organization itself. Suppose a drunk guest was misbehaving with the decorations in the open area of the property and then they got injured. In such a case, they may blame the hotel authority and file a lawsuit against them. But if the hotel has CCTV recordings collected from the CCTV outdoor surveillance cameras, they can easily prove their innocence and huge compensation money can be saved this way.

There are some people who try to make some quick money by filing a fake lawsuit against hotels or hospitality providers.  It is commonly known that most slip and fall cases happen near the pool area. Over there, some guest may get injury by colliding with someone else and may complain that the injury was a result of the hotel’s negligence near the pool area. If outdoor surveillance cameras are installed in the premises, then by seeing the recording, the hotel authority can easily prove that the injury was nothing but a result of collision. But if there was no CCTV installed then a lawsuit could have swept away thousands or even millions from the hotel’s account.

4.2.9 LAN Switches and Provisioning
LAN switching requirements are covered in the necessary detail for a successful deployment. There are several requirements for LAN switches, the primary being the ability to support the 802.1af PoE standard for those cameras that can make use of this feature. Also, aggregate backplane capacity as well as uplink capacity is important. At a minimum, switches should have 1Gigbps or 10Gigbps uplink and a 32Gbps effective backplane capacity. QoS support is also important, the ability to both trust the Layer-3 QoS markings (DSCP) and to set DSCP on ingress is critical. Most of commercially available switches support VLANs and trunking and these features are critical for segmenting IP video surveillance traffic into its own domain.
Support of features like port security, 802.1x port-based Network Access Control (NAC), Spanning Tree Protocol (STP) PortFast feature, and PortFast Bridge Protocol Data Unit (BPDU) guard are also useful. Because this design guide recommends marking video surveillance media streams as DSCP value CS5, switches that are configured by default for VoIP implementations are recommended as the media feeds will align with the default VoIP configurations.
4.2.10 IP Addressing Requirements
If the network manager plans on implementing some segmentation and path isolation over the LAN/WAN by using VRF-Lite and VLANS, the IP addressing scheme may have greater flexibility than if the video surveillance networks are routed in the global routing table. However, the general recommendations for addressing IP video surveillance devices are as follows:


  • Allocate an addressing scheme distinct from the end-user address space at the branch locations.
  • Allocate network addressing so that IP cameras, servers, encoders, workstations, and any hotel building management (BM) devices can be allocated from the address space at the remote locations.
  • Allocate addressing to facilitate summarization of network advertisements to the core.
  • Allocate addressing so that one network advertisement can encompass the entire address space for physical security (and building management) devices.


  • Configure a loopback address on remote routers from the physical security address space for NTP and other management functions.

Because the IP cameras are using static IP addresses, give careful attention to IP addressing deployed as reallocating IP addressing is more time consuming than when all end nodes use dynamically assigned IP addresses from a DHCP server.

4.2.11 Storage
The total storage requirement for a digital CCTV recorder should be estimated before a system is installed, so that hard drives of the appropriate capacity can be specified. It is vital to ensure that sufficient capacity is available so that compromises do not have to be made on either the image quality or retention time.

The storage requirement will depend on factors such as whether just video, or video and audio are being stored, frame size, required number of frames per second, number of cameras, bit rate of video and audio streams, retention period, requirements for storage resilience (e.g. mirroring or RAID storage), and operating system overhead.

In general, the recommendation is to store data as close to the source as practical. This is especially true of branch location deployments. By storing video archives locally, IP video surveillance may be deployed to locations with traditional WAN links that would otherwise not have enough bandwidth to transport the archives to a central campus/data center facility. The WAN, however, may still have sufficient bandwidth to transport or view video clips to aid in investigations or other forensic analysis. By storing locally and only transporting the small amount of video surveillance data that is needed centrally, video surveillance can be network-enabled today and tied into other BMS and analytics solutions that can benefit the business.
When using MJPEG streams, the frame size of each image plays a key role in estimating the storage and transmission requirements. Since each frame is unique and varies according to the image complexity, it is difficult to provide a guide that provides fixed frame sizes. An IP camera that provides images with low complexity will generate smaller frame sizes. Smaller frames will require less bandwidth and storage capacity.
The following formula is used to calculate the bandwidth requirements for MJPEG streams:
MJPEG storage = Average Frame size x Frame rate x duration
Example 1: For an 8-hour archive of a CIF video stream with 50 percent quality and 15 frames per second, the following is the calculation:
4 KB  x  15fps  x  3600s  =  216,000 KB/ hour
                          = 216MB /hour   x   8 hours
                          = 1.728 GB
Example 2: For a 24-hour archive of a 4CIF video stream with 100 percent quality and 5 frames per second, the following is the calculation:
320 KB x 5fps x 3600s  =  5,760,000 KB /hour
=  5,760MB /hour  =  5.76GB /hour x 24 hours. =  138.24 GB
The following formula is used to calculate the bandwidth requirements for MPEG-4 streams:
MPEG4 storage = Bit rate (kbps) x duration
The target bit rate is configured on the camera and is already expressed in bits per second.
Example 3: For an 8-hour video stream with target bit rate of 768kbps, the following is the calculation:
768kbps / 8 bits/s = 96 KB /second  x  3600 s
                   = 345,600 KB/hour  /  1000
                   = 345.6 MB/hour  x  8 hours
                   = 2.764 GB
There is no standard length of time that video surveillance recordings must be maintained in the hotel. Usually, hotel video recording tapes will be kept about 30 — 90 days. However, some regulations require that the recordings of the hotel security cameras in the casino need to be stored for 6 months or 1 year.
4.2.12 Image Presentation Devices
The image presentation device(s) should be selected after taking account of the nature of the image viewing task, the conditions in the control room or other viewing space and the need to identify, recognize, detect or monitor. It should be considered whether displays are also used for viewing maps, floor plans, device lists, system status, alarm conditions, etc.When displaying images where a significant amount of movement is present (e.g. traffic / Cab entry exit) display refresh rates and resolutions should be matched to the image source.

Display screens have different resolution depending on set-up and type. Display resolution should be selected to match and complement the camera resolution and resultant video resolution.

For larger display surfaces, the efficient display resolution can be defined according to the minimum visible size of a pixel. The size and resolution of display screens should be considered together with the recommended display sizes. An operator placed at a large distance may not be able to discern the details of a small high-resolution monitor.

CCTV cameras not only save businesses from lawsuits but also keep the guests tension-free at all times. The concerns of the guests regarding their expensive cars are automatically resolved when they see the parking area is monitored by outdoor surveillance cameras. Some businesses may not be too wealthy to appoint a security guard in every sensitive area of their premises, so going for CCTV cameras will be a good idea. It is a one-time investment that constraints the effort of opportunistic criminals.

4.3 Proposal Including System Design Site Plan
Once the site survey and Operational requirements (OR) is completed the CCTV system can be designed and a System Design Proposal (SDP) prepared.

Where an OR is not available, as may be the case for less complex CCTV systems, the SDP, drawn up as part of the process of ascertaining the customer’s needs, expectations, and patterns of usage of the premises, forms the basis of the agreement between the installing company and the customer as regards the CCTV system to be supplied. At appropriate stages checks should be made to ensure that the proposed implementation will meet the customers’ operational requirements. The operational requirement and matching test procedure is essential to assess whether the system can meet its required purpose.

The design should take into account the various requirement and location factors identified in the previous stages. At this stage a site plan should be drawn up, including locations for the various key components e.g. cameras (including field of view), and PTZ preset positions, detectors (including range and coverage), control rooms, power supplies, interconnections, etc.

The system design proposal should stipulate the conditions under which any test image(s) should be used. For example if the system will be used in both day and night conditions then separate tests should be performed for the different light conditions.

The site plan may be drawn on CAD, or be a hand drawn sketch with annotated pictures taken by a digital camera as appropriate

Any change to site plans, installation plans, system designs and/or logical architecture should be included and attached to the final documentation and it should include change permissions and risk/issue/logs generated during the installation process

4.4 Video transmission
Video transmission describes the transfer of video from a capture device (camera) to a viewing device (or software), a recording device (or software) or to a storage device using switched networks. The networks may be hard wired or may be wireless. Networks may combine different methods of transmission, e.g. typically described as analogue or IP.

In the case of both wired and wireless networks, sufficient defences should be put in place in order to protect the end user to ensure that the video transmission system is not vulnerable to attack from outside potentially rendering the asset unprotected, or used as a means of penetrating another network to obtain otherwise confidential information.

The use of IP technology is becoming more widespread across a variety of applications and industries. The security industry is no exception. IP can often be used to provide a cost-effective means of installing/monitoring security systems by exploiting existing infrastructure and enhancing and/or replacing older arrangements

If an Alarm Receiving Centre (ARC) wishes to provide remote monitoring & remote viewing of IP enabled systems, they will have to design and implement robust network solutions

A network can be built up from many differing types of service. One of the more common is ADSL (Broadband) but there is also SDSL, leased lines, megastreams, kilostreams, GPRS (Cellular network), ISDN Dialup, PSTN Dialup and quite a few other options in the form of direct links to service providers.

4.5 Bandwidth requirements
While one single alarm system uses very small amounts of bandwidth, monitoring several hundred or even thousands could have a dramatic impact on the ARC links, i.e. consider open/close signals happening at more or less the same time every day from all systems.

It is unlikely that all these signals would be sent at exactly the same time so bandwidth is unlikely to be of major concern to the ARC for a small number of systems. However, as you start to calculate bandwidth requirements for CCTV you can see that you quickly begin to use up the available bandwidth.

For alarms, you should be more concerned with hardware systems able to process a high number of systems simultaneously. e.g, firewalls, receivers/servers.

However, a CCTV system sending multiple data streams could require significant bandwidth in much the same way as a DoS attack (Denial of Service). There should be systems in place to address these concerns.

There are various benefits of installing CCTV cameras in hotel premises. Some of them are discussed below:
  • Beside rooms, there are various facilities that hotels provide such as spa, gym, swimming pool, etc. Presence of CCTV at these places helps to identify intruders and management can take quick action to restrict them from entering the place.
  • CCTV cameras help curb unwanted access like that of intruders and uncategorized customers to hotel facilities like spa, pool or Gym etc.
  • The presence of CCTV cameras in hotel parking, corridors and entrances give a sense of security to the guest. This has become a major selling point in hotels today as people tend to move to hotels who enlist security as their main priority.
  • 24/7 surveillance facilities of entry and exit areas help restrict trespassers from entering the premises.
  • CCTV when installed in storage or maintenance rooms of hotels helps in preventing a possible theft by employees. Employees also hesitate to do any unethical activities when they see a CCTV camera is installed and realizes they are being monitored.
  • Presence of CCTV cameras in hotel’s building and especially in parking area gives mental peace and satisfaction to guests.
  • There are some unexpected activities such as slips, falls or fights that happen with guests. In such cases, the customer files a lawsuit against the hotel and demands alimony. To bring the truth out, management should analyse CCTV recording and if they find that it happened because of negligence of hotel, they should quickly resolve the matter with client. If they see that hotel is not responsible for whatever happened, they can counter the allegation and can use CCTV footage as evidence.
  • These footage play a key role in evading fraud lawsuits against the hotel and gather evidence in investigations. In case of in-house charges, CCTV camera footage help prove hotel claim or accusations against guests and in case of criminal investigations help the police gather evidence.
  • The hotel industry is a very competitive industry. Every hotel owner implements new technologies to gain competitive advantage and attract more and more customers. One such latest tech practice is CCTV surveillance. The management of hotels choose from various CCTV packages available in the market and makes their premise safe and secure.
  • There are some guests who harm the property such as damaging furniture in common area or the decorations and when they are fined, they deny. In such cases, CCTV footage acts as an evidence and strengthens the hotel’s viewpoint.
Maintaining a CCTV surveillance system in your hotel is very easy nowadays. For live viewing, you can install one without DVR and can easily monitor everything live and if you want a recording of all the activities then you can go for CCTV systems that come with DVR or can be attached to your computer. With technological advancement, wireless CCTV cameras are also available in the market and CCTV installation has become a very easy task.
When CCTV cameras are installed in your hotel premise, you and your guests can remain tension free and focus on the event. While installing the cameras, the management should consider that the cameras does not invade the privacy of guests in any manner, the only purpose of installing the cameras should be safety and security of the guests and hotel premise.
5.   Installation

5.1 Evaluation of Equipment
Where a customization of a product/software is undertaken in order to meet specific user needs, the customization should be tested equipment before being deployed. The customization should also be tested against the user need defined. Equipment may be required to exchange information in order to perform a function of some kind (for example, to move a PTZ camera to a position based on an input from another system, or increase the record rate and resolution of a device based on the inputs from another device). In these cases it is recommended the successful operation of the devices be tested first before being deployed. This is particularly recommended if the equipment is made by different manufacturers.
5.2 Cable laying
Security camera cable is an important part of CCTV industry. The requirements of BS 7671 (Requirements for electrical installations, IET Wiring Regulations) should be met using the edition current at the time of installation.
All interconnecting cables should be fixed and supported and installed to conform to good working practices.

As we all know wired CCTV camera footage totally depend on the wiring system. If cabling exposed, then it can be get tempered and you cannot get a video for a crime evidence. Each and every cable of the camera never revealed, especially for the outdoor environment. Covering all camera cable, also reduce the service issues.

Possible fixings and supports include:
• Conduit: when metal (MS) is used, suitable bushes or grommets should be fixed to each end to prevent damage to the cable. When conduit is used to carry the cable it should terminate as close as possible to the unit to be connected.
• PVC or metal trunking: where trunking is used to carry the cable it should terminate as close as possible to the unit to be connected.
• Insulated clips
• Cable ties
• Catenary Cables: When overhead catenary wires with loop holders or plastic buckles are used the supporting wire should be securely attached to the building. Self-supporting catenary cables may be used provided they are correctly designed.

Camera cable is basically manufactured in such a way that it should optimize video signal quality. CCTV camera cable is composed of two sub cables that will run simultaneously for transmitting both video and power signal, Analog Video transmitting cable  also called RJ59 Cable, one sub cable is the central solid copper conductor core shielded by dielectric material, then further shielded by  copper or alloy braid that will transmit video signal and another is  power cables that will transmit  power and both two-part is insulated by PVC having diameter of 5.5 mm to 7.5 mm. IP Video transmitting cable called CAT6 / CAT 6A etc.

All cables should be of a type and size appropriate to the application and should take account of transmission rate, electrical interference and voltage drop.
Any plastic or PVC component used as part of the installation of cables should be suitable for the environment in which it is installed. Externally mounted ties and clips should be made of UV-resistant material.

Environmental conditions such as dampness, excessive heat, risk of corrosion, mechanical or chemical damage, should be taken into account when determining the degree of protection required for cable runs.

Any cables used underground should be suitable for that purpose and have adequate protection from mechanical damage. Underground cables should provide a high level of resistance to dampness, chemical reactions, corrosion and rodents.

5.3 Power SuppliesEquipment
Power supplies should be capable of meeting the largest load likely to be placed upon them under normal operating conditions. The maximum load on the power supply typically occurs during start-up of the system following a power failure. The assessment of the electrical current demands for design purposes should also include an extra tolerance of 5% to 10% over capacity.

Where safety and security considerations do not require continued operation of the CCTV system during a mains supply failure, the public mains supply may be the sole supply for the system.

Power supplies should be located within a secure area, in a position safe from tampering, and should be ventilated in accordance with manufacturers’ requirements for safe operation.
All equipment housings should be clearly marked with the operating, or supplied, voltage, whichever is higher.

The installation and position of additional power supplies should be considered if voltage drop across cables is likely to reduce the voltage to equipment to an unacceptable level. Alternatively, in some cases, it may be possible to reduce the voltage drop in the cables by using cables with less resistance, greater conductor size or by using more cores of a cable for the supply of power.

5.4 Camera Equipment
In CCTV installation, the position of the camera plays a major role.  if you want to record a good footage from CCTV camera then you need find a best place for it.Cameras should be mounted in positions free from obstructions and, wherever possible, not directly viewing bright light sources. The mounting position should allow installation and maintenance to be carried out in a safe manner.
If cameras are to be mounted on towers or brackets the following environmental considerations should be made:
§  Rigidity, taking into account potential wind velocity, equipment type and equipment mounting and fixing positions.
§  Electrical interference and the possibility of damage by lightning (see BS EN 62305).
§  Dust, airborne particles and other potential sources of corrosion or contamination.
§  Condensation inside housings and other equipment due to changing temperatures.
Tower and bracket equipment should be installed according to the manufacturer’s instructions and within loading specifications.

Where movement of towers is possible, cables and cameras should be installed with their safety and protection against tampering taken into consideration.
The alignment and mounting of line of sight transmission equipment (e.g. optical and microwave) is often critical and consideration should be given to the method of alignment and to the rigidity of the mounting.

Wired connections should, wherever possible, be concealed. Mechanical protection of flexible cable to movable cameras should be considered where physical damage is a possibility e.g. metal conduit or flexible conduit.

The camera should be installed in such a way that it is difficult for an unauthorised person to change the field of view of the camera. This can be achieved by installing at a suitable location and height, the use of appropriate physical mounting and possibly further by the use of security fixings.

Consideration should be given to the detection of loss of video signal, camera obscuring or blinding on any connected camera. An audible and/or visual system alarm should be generated to inform system operators that acknowledgement is needed and, if defined in the OR, this alarm should be mapped to an output for connection to an alarm system.

5.5 Recording Equipment
The environmental conditions under which equipment will be expected to operate should be taken into account and environmental housings affording appropriate protection should be specified.

Equipment should be installed to manufacturers’ instructions. To reduce the risk of condensation a heater should be installed within housings that may be subject to changes in temperature.

Where there exists the possibility of penetration by solid objects, dust or water, housings that afford appropriate environmental protection should be used. This is typically quoted as an IP Rating. To prevent tampering, lockable enclosures should be considered to house the control and recording equipment. A method of user name and password to access control functions should be considered to restrict access to authorized operators.

For all control and recording equipment the following should be taken into consideration:-
         Temperature.
         Airflow of equipment (front to back, side to side, bottom to top, etc), ensuring that the layout of equipment does not have these intakes/outlets blocked.
         Humidity.
         Dust and other air contamination.
         Vibration.
         Electrical interference.
         Rigidity, taking into account high wind velocity.
         Ease of access for maintenance and service.
         Convenience of operator use.

5.5 Display Screens
Display screens may be desk or wall mounted with consideration given to the ergonomics of the operator. The display screens should be installed to minimise the effect of lighting, particularly sunlight, which can adversely affect the viewing experience. Wall or ceiling mounted display screens should be mounted using suitable brackets in accordance with manufacturer’s instructions.

Consideration should be given to the positioning of such screens to ensure they are above head height or not in a position where people may bang their head on them.

Dos and don’ts of CCTV installation
The do’s in this section are your go-to suggestions for the maximum utilization and best establishment of your CCTV network.
1.     Place at least two cameras at the entrance and exit gate. So, that you can get a clear view of the people entering and exiting the hotel.
2.     Install cameras in all open areas of the hotel which is accessible by all the guests like the pool, park, lobby, service corridor, loading dock, service exit, and stairs. Stairs and service exit are most commonly left out of the surveillance system as they are considered place less visited or used by the guest. But this is where most systems fail as in most cases these become grounds for suspicious activities.
3.     CCTV cameras are important in rooms which store safe deposit boxes, money or sensitive information as these are the places which have the most chances of theft. Though not regularly followed, it is advised to have hidden cameras in these locations because in most cases criminals find a way to avoid detection once they know where the camera is installed.
4.     CCTV security network should be developed all around the hotel from every angle to protect the hotel from the neighborhood and unauthorized access.
Don’ts of CCTV installation: The Don’ts majorly focuses on measures to prevent infringement of privacy. In this network of CCTV cameras and cyber-security, privacy has become a major concern.
1.     According to the hotel security and camera law, hotel room surveillance is illegal. So, avoid installing cameras in rooms, you can install them in corridors so that you know who went into the room and when.
2.     Don’t be swayed by the sales pitch, always opt for security systems which use Category 5 or Category 6 twisted pair cables. Outdated tech is prone to hacking, so it’s advised to have the latest.
3.     Don’t waste your budget on Pan Tilt Zoom cameras, hoping to cover a large area with zoom. It is not true nor is it efficient.
4.     Don’t mount all your cameras on your on the ceiling or 15 feet walls. The height of the camera prevents you from getting a good look at faces.
5.     Avoid installing cameras in angles which could capture images inside a bathhouse, washroom, and spa or massage center on the hotel premises.
There are a lot of do’s and don’ts to hotel security but this will give you a basic lay of the land Technology is moving leaps and bounds every year and it’s important to keep your system updated to beat the competition.
6. Commissioning, Handover and Documentation

Commissioning should consist of the inspection and testing of the installed system by the installation technician/engineers; handover requires the demonstration of the system to the user and the subsequent acceptance of the installation by the customer along with proper manual / handing over document.

6.1 Testing & Commissioning
A CCTV system test plan should be agreed and the tests should be selected to demonstrate during handover that the CCTV system meets the agreed specifications.

This should include testing of the following aspects of the system(s):
• All wiring is correctly terminated.
• Supply voltage is correct to all appropriate parts of system. Where extra low voltage cameras are used, the voltage at each camera should be recorded.
• Operation of all monitoring, switching and recording equipment (including time synchronisation) is satisfactory, including playback equipment.
• Interfaces with alarms (e.g. movement alarms, fences) are satisfactory and triggering of alarms is correct.
• Beam interruption detectors are aligned correctly, where used for triggering the CCTV system.
• Appropriate notices to indicate CCTV in operation have been provided.
• All indicator lamps are working.
• If a standby power supply is specified, ensuring that the system continues to operate correctly to specification when the mains supply is disconnected.

This should also include testing of the following aspects for each camera:
• Camera type and lens fitted is correct for each position.
• Operation of all automatic and / or remotely controlled camera functions (e.g. pan, tilt, zoom, focus, electronic iris and wiper) is satisfactory.
• Correct setting of all pan and / or tilt limits.
• Camera movement, and field(s) of view seen through the appropriate monitor(s), is correct and free from obstruction.
• Operation of electronic irises and focus is satisfactory under the range of intended light levels (night conditions may be simulated through use of suitable neutral density filters).
• Satisfactory operation of supplementary lighting.
• Warning labels are in place in respect of possible sudden movement of camera positioning equipment and in respect of any devices that could cause injury, including damage to the eye.

There are test methods given in:
BS EN 50132-7:2012, Annex B or C
BS EN 62676-4, Annex B or C
These test methods may be used wherever an objective evaluation is required to confirm that the required performance can be obtained. The use of the test methods listed above is a matter for agreement between customer and installer and is not a requirement for every installation. Other test methods are permissible.

Commissioning should include visual and functional testing to ensure that:
a) The system is installed in strict accordance with the agreed specification and that the standard of workmanship is high, and
b) The commissioning requirements of this Code of Practice and BS EN 62676-4 or EN 50132-7 are met.

6.2Handover
At handover, the installing company should:
• Demonstrate all aspects of the system operation to the customer, including any necessary safety precautions.
• Ensure that the correct documentation (see 6.3) is given to the customer to enable the system to be operated, adjusted and maintained.
• Train the system user(s) in its correct operation and arrange for any necessary future training.
• Ensure that users know the procedure for summoning assistance in the event of system malfunction.

Following handover the customer should be asked to sign an acceptance document and to enter any confidential information (e.g. passwords which restrict user access to engineer and other reserved functions) required to make the system perform to the agreed specification.

Access to CCTV recorded images needs to be restricted and tightly controlled for Data Protection Act purposes. This means staff should only have access if they need it to achieve the purpose of the scheme. Third party access should be limited to law enforcement, prosecution agencies, legal representatives, the media (when assisting to catch a criminal) and people whose image has been recorded (unless it would prejudice criminal proceedings). All requests and reasons for denial need to be documented.

If individuals want to view recorded images of them, they need to apply to the data controller in writing and pay a small fee (max Rs50). The data controller must deal with the request within 30 days – even if it is to deny their application.

6.3 Documentation
Upon completion of a CCTV installation there should be a record for each system making up the installation, which should include the following information where appropriate:
a) The name and address of the protected site.
b) The name and address of the customer.
c) The location of each control unit and the type and location of each camera and its associated hardware.
d) An indication of the camera view(s), their purpose(s), and the area(s) protected should be documented. The camera view(s) may be provided in the form of a drawing, a hard copy printout or a video recording.
e) The type and location of power supplies.
f) Details of those cameras that the customer has the facility to manoeuvre or isolate.
g) The type and location of monitors and indicating and / or warning devices.
h) Manufacturer’s documentation relating to equipment and its operational settings/controls.
i) Full instructions for the correct use of system, including details of routine testing procedures and any necessary maintenance requirements (see 7); possible sources of interference with the system and equipment with which the system itself will interfere should be identified.
j) The operation, storage and cycling of recording media.

The make and model number of all items of equipment should be stated in the system record. The system record (i.e. for the “as installed” system) should be agreed with the customer and a copy provided to the customer.
The customer should be offered drawing(s) of the CCTV installation. Where symbols are used in drawings, a key to these symbols should always be provided to enable customers to understand the content of the drawings.

The customer should be provided with the record of the results of the objective test where this was agreed to be a requirement.

All documentation referring to a security system should be kept in a place to which access is restricted to authorized persons.

6.4 CCTV Signs
Your guest needs to be aware that they are entering hotel area that is being monitored by CCTV surveillance equipment. Signs should be placed so that they are clearly visible and legible. The size of the sign will vary according to the circumstances of its location.

7.0 Maintenance

Effective and regular maintenance of a CCTV surveillance system is essential to ensure that the system remains reliable at all times. Regular maintenance by a service company, and effective failure reporting by the user, will enable potential problems to be identified at an early stage so that appropriate action can be taken.

A maintenance agreement should be agreed between the service company and the user of the CCTV system and should include the following:
• Preventative maintenance visits - Planned servicing of a system, carried out on a scheduled basis.
• Corrective maintenance - Emergency servicing of a system, or part thereof, carried out in response to the development of a fault.
• User maintenance - Basic responsibility of the user to maintain operation of the CCTV system.

8.0 Monitoring

Monitoring requirements of a CCTV system will vary greatly dependent on many factors, such as whether there is a need to view live and / or recoded images, whether the monitoring be done locally and / or remotely, the complexity of the CCTV system and the type of response required be it a guarding, key-holder or perhaps police response.

For the data that you receive from CCTV surveillance cameras to be of any use, the images produced need to be as clear as possible. Frequent checks need to be made to make sure the equipment is performing properly and if tapes are being used they need to be of good quality. If the quality of the images deteriorates to an unacceptable level, the equipment should not be used and should be replaced.

Images should not be retained for longer than necessary if they aren’t required for your purpose. Retained image integrity needs to be maintained to insure its evidential value and to protect the rights of the people who have been filmed.

Images should be erased after the retention period or stored in a secure place if being used for evidence. The reason, date, crime incident number and location need to be documented when they have been moved to another location.

Authorized employees should only be able to monitor the information from your CCTV surveillance equipment. All recorded image viewings should be restricted to a designated staff member who can decide if a third party may view the recording.

8.1 Control Room
Attention should be given to the ambient lighting within the control room and, if the room has windows, how sunlight will affect the operators’ ability to monitor the system. This may influence the overall control room layout or require additional window blinds.

If the CCTV system has a requirement for live viewing, camera control, system management, or any other human intensive tasks, a control room should be specified to house these functions. The ‘control room’ could be a single workstation, or a large operations center.

The operator should be presented with a manageable number of CCTV feeds (e.g. is the operator able to suitably view 8 cameras and perform the viewing tasks related to all of those camera views, and their anticipated levels of activity?).
The camera view should be presented to the operator at a size sufficient to allow them to undertake the viewing tasks as above either routinely or by manual or automatic switching of views. (E.g. is the operator being presented with views intended for identification tasks, but displayed as part of a quad view, at a lower resolution, reducing the amount of information available to the operator?).

Spot displays should be positioned directly in front of the operator at between approximately 0.5 – 1.5m and of a sufficient size. They should also be placed so that the operator can easily turn their sitting position to face the displays.

8.2Incident Response
Locally agreed procedures should detail the action to be taken in the event of an incident. These procedures should conform to those laid out as below:
• Action to be taken
• Who should respond?
• The timescale for response
• The times at which observation should take place
• The criteria for a successful response
•CCTV operators should maintain a record of all incidents in the appropriate incident log.

The overall indicator of successful response to incidents is that the CCTV scheme fulfils its objectives, i.e.:
• Restoration of tranquility
• Dispersal or control of the situation
• Prevention or minimization of injury and damage
• Reduction of crime and disorder, to improve safety and reassure the guest
• Identification of a suspect
• Gathering relevant information to assist in the subsequent apprehension of offenders
• Apprehension of a suspect with evidence
• Guest safety through effective evacuation
• Traffic flow restored

8.3 Recording quality and storage
No more images and information should be stored than that which is strictly required for the stated purpose of a surveillance camera system, and such images and information should be deleted once its purpose has been discharged.

Recorded material should be suitable for evidential use as required by the courts if it is to be admitted as evidence; it is therefore essential that recorded material evidence maintains total integrity and continuity at all times. Appropriate security measures should be taken to prevent unauthorized access to, or alteration, disclosure, destruction, accidental loss or destruction of recorded material.

Access to retained images and information should be restricted and there must be clearly defined rules on who can gain access and for what purpose such access is granted; the disclosure of images and information should only take place when it is necessary for such a purpose or for law enforcement purposes.

Data should not be released to Hotel outside the ownership of the CCTV scheme, other than under guidelines referring to the release of information for the purposes of identifying alleged offenders or witnesses, in accordance with the particular CCTV control room’s policy and procedure.

8.4 Media use, storage and disposal
Recorded material should be stored in a secure environment, so that the integrity of the media is maintained. This includes recorded material that has been requested by the law enforcement agencies or contains a known incident. Controlled access to the recorded material storage area should be strictly maintained. Data that is to be destroyed should be destroyed under controlled operation.The register should show the life of the media at all stages whilst in the owner’s possession; such a register may also show itself to be useful in enabling evaluation of the CCTV scheme.

The register should include the following:
• Unique equipment reference number.
• Time/date/person removing equipment from secure storage for use.
• Time/date/person returning equipment to secure storage after use.
• Remarks column to cover additional points (e.g. erase/destroy/handed over to law enforcement agencies/removed from recording machine).
• Time and date of delivery to the law enforcement agencies, identifying the law enforcement agency officer concerned.
• In the event of a non-automated system of erasure of data, the time/date/person responsible for erasure and/or destruction.

8.5 Exporting recordings
When exporting recordings the following procedure should be followed:
• Maintain records of the operator(s) of the equipment. This enables the manager to establish who was operating the equipment at any given time.
• Record without interruption, wherever practicable. Any interruption should be logged.

References
§ BS EN 62676-4:2015 - Video surveillance systems for use in security applications.
§ BS EN 11064-7:2006 - Ergonomic design of control centres.
§ ANSI/BICSI 005-2016 – Electronic safety and security system design and implementation
best practices.
§ European Network and Information Security Agency – Enabling and managing end to end
resilience.
§ IPVM cabling best practices guide, Jan 3, 2018.
§ Hotel operators’ security standards.
§ Hotels Association of India – Guidelines for Security Measures


§ Indian Association of Hotels and Restaurants
